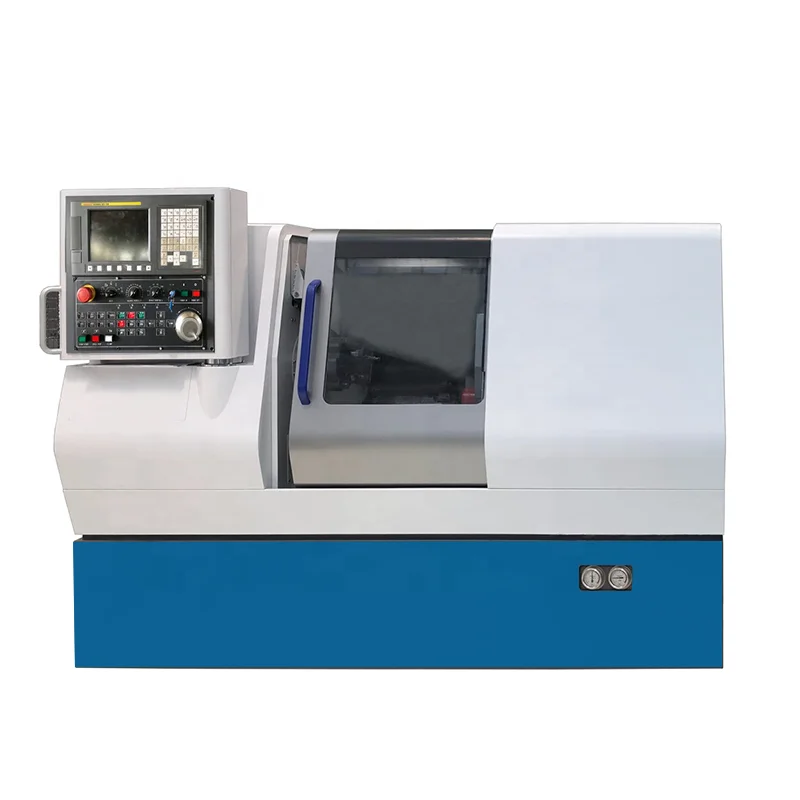

Sumore Latest CNC Turning Center STC40 is assembled by high strength cast iron with equally high rigidity, being installed with a big 56/66 mm spindle bore can also enormously improves its own rigidity and capability. Adapting high quality bearings, this large diameter spindle bore also increase its precision of processing. The leading orbit without clearance has increased the processing ability, Meanwhile, two directions of linearity rolling bed orbits still be lubricated nicely to reduce any abrasion during missions.

 High precision slant CNC lathe with Taiwan screw & linear guideway.  High precision cartridge type spindle ensure the rigidity and precision.  Taiwan high precision C3 grade ball screw ensure positioning accuracy more stable.  Siemens,Fanus, Syntec, Fagor controller as optional.  Monoblock cast iron of the whole machine ensure high rigidity.

Specification

	Model	STC40
CAPACITY	Max. swing over bed	φ350mm
	Distance between centers	400mm
	Max swing over cross slide	φ180
SPINDLE	Chuck diameter	φ200mm
	Spindle bore	φ61mm
	Spindle nose	A2-6
	Max spindle speed	4000rpm
FEEDS	Z axis travel	400mm
	X axis travel	470mm
	X/Z rapid speed	15/15 m/min
	X/Z guide way & screw	Taiwan
CARRIAGE	No. of stations	6 way Gang type
CARRIAGE	Tool size	20x20mm
MOTOR	Spindle Motor	7.5KW
MOTOR	coolant pump power	120W
DIMENSION	Overall dimension	2650x1600x1750mm
DIMENSION	Packing size	2860x1800x2050mm
WEIGHT	N.W./G.W.	2200/2400kgs
