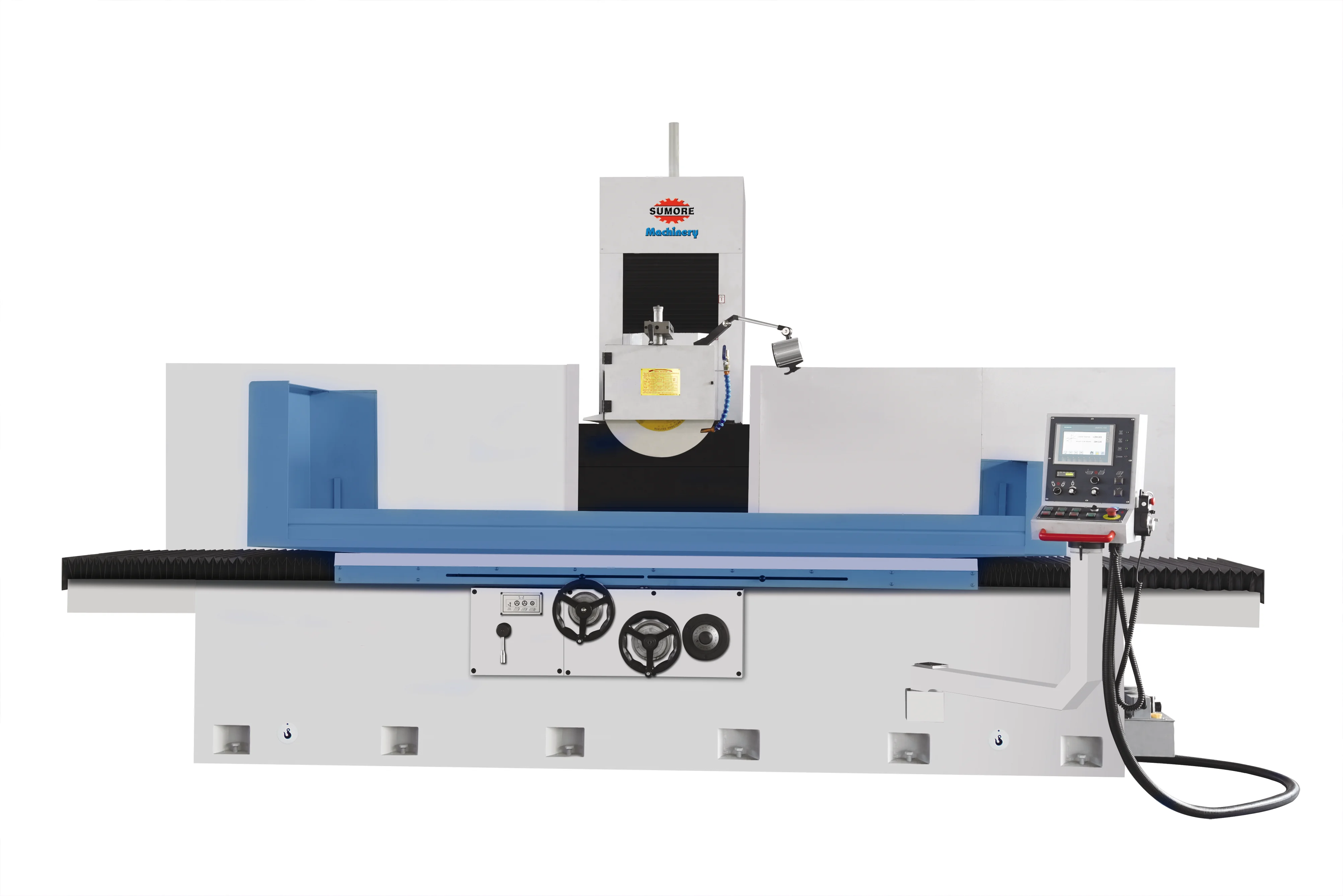

SP50100 SP60150 SP60200 Surface Grinder

SUMORE !!! Automatic High Precision Surface Grinding Machine for Metal Grinding SP50100 Surface Grinder Grinding Machine Price SP50100 SP60150 SP60200 Surface Grinder for Metal Work

Surface grinding machine mainly uses the grinding wheel to grind various materials such as steel, cast iron and non-ferrous metals. According to the material and shape of the workpiece, different clamping and positioning methods can be used. For general planes, electromagnetic chucks can be used or directly fastened to the worktable for grinding; planes, right-angled surfaces, arbitrary angles, cylindrical end faces and other special shapes can be ground on fixtures or multi-functional powerful electromagnetic chucks.

Features 1. External hydraulic unit ensures low temperature rising and supply stable power. 2. Auto center lubrication unit. 3. Very easy to set auto ground program include rough, finish, and spark-out stroke. 4. Precision grinding spindle runs in maintance-free, support by preload high precision angular ball bearing. 5. Machine is designed for continuous operating at maximum speed, very quiet operation, maximum accuracy.

Specification

SP50100 SP60150 SP60200 AHR/AHD/SD/SD2 surface grinder high precision hydraulic surface grinding machine price

Model		Unit	SP50100	SP60150	SP60200
Working Surface of Table		mm	500×1000(20″x40″)	600×1500(24″x60″)	600×2000(24″x80″)
Max. Table Travel		mm	1140	1600	2230
Max. Cross Travel		mm	540	650	650
Distance Between Table Surface and Spindle Center		mm	590	600	600
Max. Table Load		kgs	800	1200	1200
T-Slot (NumberxWidth)		mm	3×16	3×16	3×16
Table Speed		m/min	5~25	5〜25	5〜25
Crossfeed Handwheel	1 grad	mm	0.02	0.02	0.02
Crossfeed Handwheel	1 rev	mm	5	5	5
Automatic Crossfeed of Saddle		mm	0.5-12	0.5-12	0.5-12
Automatic Crossfeed Rate		mm/min	1250	1250	1250
Power Cross Feed		mm/min	1500	1500	1500
Grinding Wheel Dimensions		mm	355x40x127	400X50X127	400X50X127
Spindle Speed	50Hz	rpm	1450	1450	1450
Spindle Speed	60Hz	rpm	1740	1740	1740
Vertical Handwheel	1 grad	mm	0.001/0.1	0.001/0.1	0.001/0.1
Vertical Handwheel	1 rev	mm	0.1/1	0.1/1	0.1/1
Automatic Down Feed Rate		mm	0.001-0.1	0.001-0.1	0.001-0.1
Power Head Increment		mm	600	600	600
Spindle Motor		kw	7.5	7.5	7.5
Coolant system		w	90	90	90
Hydraulic motor		kw	2.2	5.5	5.5
Transverse motor		kw	1.5	1.5	1.5
Floor Space		mm	4445×2445	5900X2500	6200X2700
Packing Dimensions		mm	3400x2265x2250	5800X2300X2250	5800X2300X2250
Net Weight		kgs	5000	7300	8500
