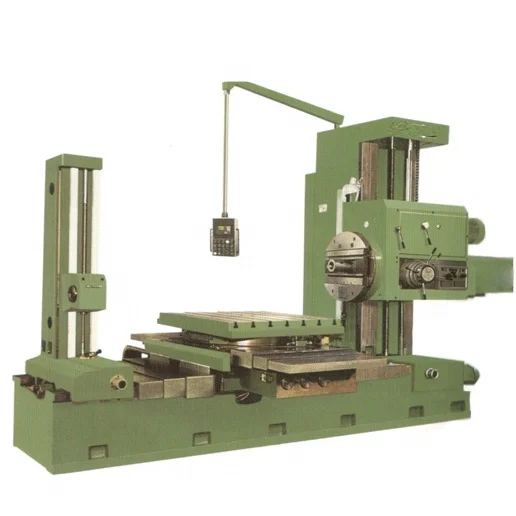

Spindle diameter:110mm
Power of main motor:7.5Kw
Weight of machine:9100Kg
Facing head diameter:630mm
| Unit |
TX611 |
|
|
Spindle
|
||
|
Spindle diameter |
mm |
110 |
|
Spindle Taper |
— |
Morse No6(IS07:24No50) |
|
Max.spindle Torque |
N.m |
1225 |
|
Maxspindle thrust |
N |
12250 |
|
Number of spindle speedr/min |
— |
22 |
|
Range of spindle speed |
r/min |
8-1000 |
|
Power of main motor |
KW |
7.5 |
|
Facing head
|
||
|
Max.facing head torque630mm |
N.m |
1960 |
|
Facing head diameter |
mm |
630 |
|
Range of facing head speed |
r/min |
4-200 |
|
Number of facing head speed |
— |
18 |
|
Table
|
||
|
Table working surface(L x W) |
mm |
1100 x 960 |
|
Maxpermissible load on table |
kg |
2500 |
|
T-slot |
mm |
22 |
|
NumberofT-slot |
— |
10 |
|
Working range
|
||
|
X-axis travel |
mm |
900 |
|
Y-axis travel |
mm |
900 |
|
X-axis travel |
mm |
1000 |
|
W-axis travel(Spindle travel) |
mm |
600 |
|
U-axis travel(Facing slide travel) |
mm |
180 |
|
B-axis worktable rorary |
° |
360 |
|
Distance between spindle axis and table surface |
mm |
0 |
|
Feed range of revolution
|
||
|
(XYIZ/W) rapid travel (X/YIZIW) |
mm/min |
2500 |
|
(X/YIZ/W/U)Range of axes speed per spindle revolution (X/Y/ZW/U) |
mm/rev |
0.04-6/0.01-1.88 |
|
(X/YIZ/W/U) Feed range (X/YIZ/W/U) |
mm/min |
|
|
Precision
|
||
|
(X/Y/Z)leasurement system reading precision(X/Y/Z) (Z-axes measurement optional) |
mm |
0.005 |
|
B-axis measurement system reading srecision(B-axis measurement optional) |
° |
0.001 |
|
General parameter items
|
||
|
Overall dimensions (Lx WxH) |
mm |
4910 * 2454 x 2750 |
|
Weight of machine |
kg |
9100 |
